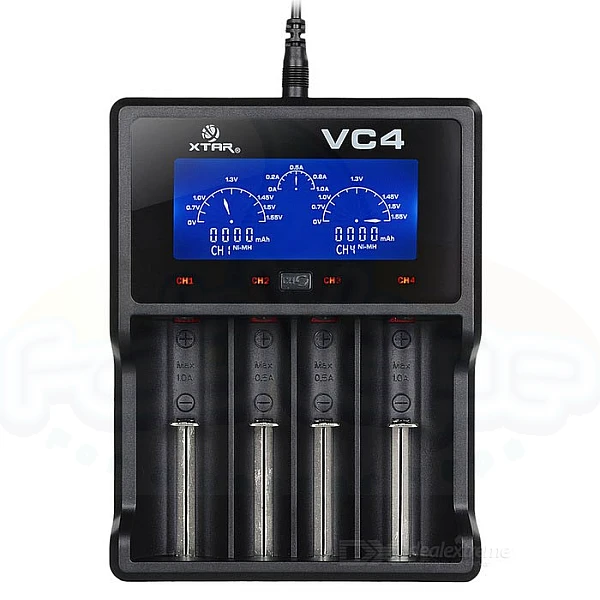

Charger XTAR VC4
By XTAR VC4 4-Slot USB Charger invite four batteries independently in one unit.
Intelligent device with many features
This charger is a true all-rounder. By XTAR VC4 invite Li-ion and Ni-MH batteries independently simultaneously in one device. So two technologies are combined and upload at the same time the rechargeable AA batteries for the remote control or the flash and 18650 Li-ion batteries for eZigarette and LED flashlight. The large display informs you about the capacity and the charging process in real time. Take the XTAR VC4 your batteries.
For each battery type, the appropriate charging method

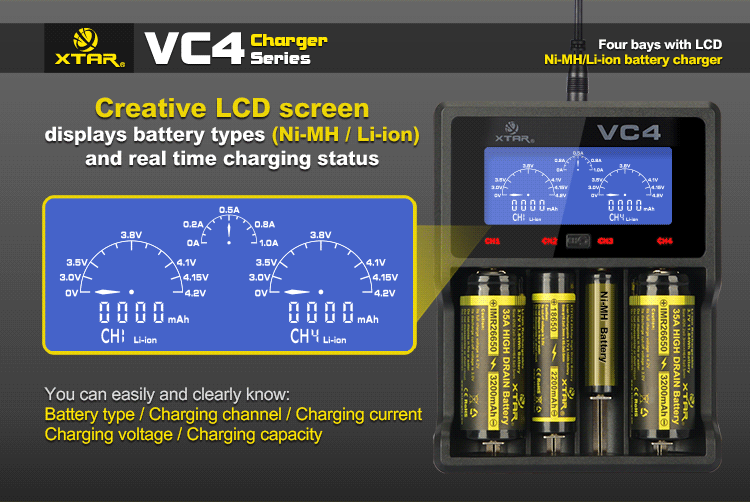

By XTAR VC4 you get a smart charger with a difference. The device is compatible for all battery sizes. It automatically detects the battery type and selects the appropriate charging method. The large display provides information on capacity and charging process, LEDs indicate whether the battery is charged or is still in the loading process. If necessary, the display can be switched off and thus consumes no power.
Preserves the life of your batteries
With the soft-start function , the life of your batteries will last long. By the soft start function for deeply discharged batteries are first loaded with low charge currents before the proper charging process begins. Combined with the automatic charge stop so the life of your battery is obtained. With the handy USB input you can use your batteries at home or on the go just download. Take the practical XTAR VC4 charger and supply your batteries quickly and easily with power.
4-channel charger for Ni-MH batteries with 1.2V or Li-Ion batteries with 3.7 V rated voltage
following battery sizes can be loaded
- Ni-MH AA, AAA, C, D
- Li-Ion: 10440, 1450 0, 16340, 17670, 18350, 18500, 18650, 22650, 26650, 32650 (only in the two outer charging slots )
Special features of Ni-MH batteries
- pulse charging process
- automatic shutdown with negative delta V
- max. Charging voltage 1.45V
- Charging time limitation with shutdown
Special Features of Li-Ion batteries
- charging method TC / CC / CV with monitoring of the battery state of charge
- max. Charging voltage 4.2V
- trickle charge; falls below the final charge voltage is below 3.9V the charging process starts again
Reverse polarity protection
USB input: 5V / 2100mA -
Operating temperature: 0 ... 40 ° C (do not use outdoors)
Length: 149 mm, Width: 115 mm, height: 35 mm
Weight: 210 g
Charger XTAR VC4
USB connection cable
Please note that the XTAR VC4 Charger achieved the fastest load time when using a USB Power Adapter with 2 A output power.
For this you can usually use your existing smartphone PSU or alternatively purchase a suitable USB power supply as an accessory.
