SQuape S[even] BF RDA
SQuape S[even] BF RDA

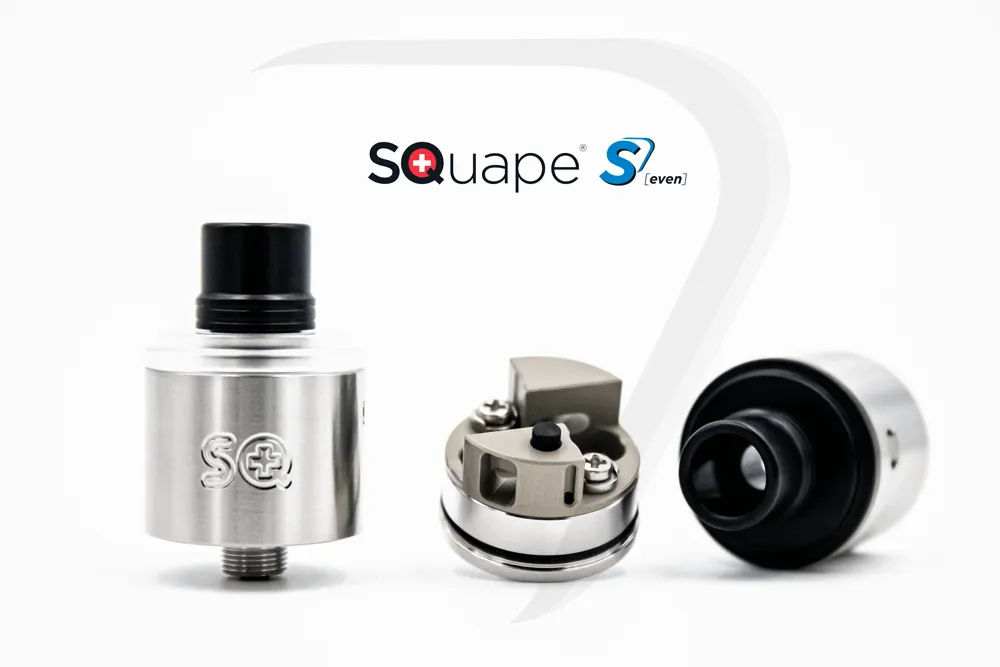

The SQuape S[even] is a Bottom Feed RDA (rebuildable atomiser) developed and produced entirely in Switzerland by StattQualm GmbH. This bottom feed RDA, also called „squonker“, can be used as direct to lung (DL) and mouth to lung (MTL) as well as RDA without bottom feeding.
In bottom feeding mode, the liquid supply is fed to the evaporator chamber by pressing the liquid bottle in a suitable bottom feed regulated and non-regulated device.
The SQuape S[even] convinces by easy handling, excellent quality, outstanding taste performance as well as its versatile air adjustment possibilities. The danger of short-circuits is completely eliminated by the smart current conduction and the non-conductive surface structure of the pressed-in deck made of ematalised aluminium.
Scope of usage:
We recommend to use the SQuape S[even] with resistances between 0.3 and 1.8 Ohm and 7 - 45 Wattages. It is possible to use the atomiser above or below the above specifications. Please note that the unit may heat up due to excessive power. This is just a recommendation.
• elegant and clean design
• easy supply due to bottom feeding
• stepless air flow control by turning the cap. DL and MTL separated.
• Two sides airflow. DL 2 x 4mm / MTL 2 x 1mm
• single coil operation
• Heat dissipation by additional Top Cap made of PMMA (POM included).
• Sealable bottom feeder port for use as dripper - RDA without bottom feeding.
• non-conductive components to avoid short circuits
• user-friendly handling and coiling options
• temp. control and volt/watt suitable
• 100% Swiss Made
– Diameter: 22 mm
– Height (without SQuip Tip and 510 connector): 20mm
– Weight: 30.5g
– Connector: 510
Here at StattQualm we feel strongly about what materials we use and therefore only the best materials make it into our atomisers. The following table shows what materials are used in the SQuape S[even]. Should you have known allergies to one of the listed materials we strongly suggest you do not use this atomiser:
– Stainless steel components: Steelnumber 1.4404 / 316L

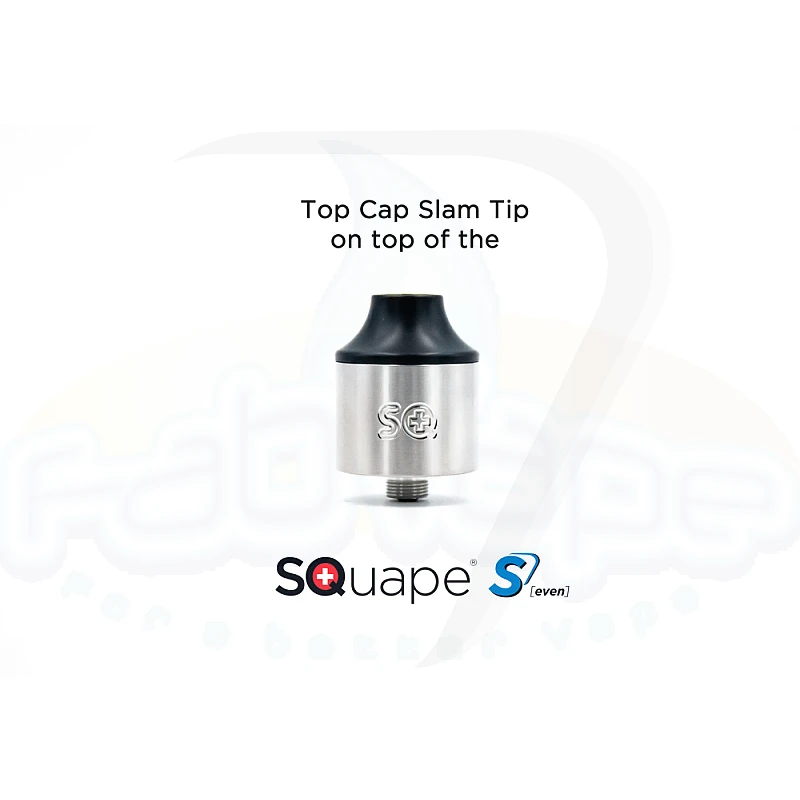

– Top Cap: PMMA, POM
– Deck: Aluminium ematalised
– Mouthpiece and cap stopper: POM
– O-rings: nbr 70 shore
Scope of delivery:
1x SQuape S[even] BF RDA
1x SQuip Tip N DL
1x Top Cap Ring PMMA clear
1x Top Cap Ring POM Black
1x SQ Grip Band
2x Dripper screw plugs
2x COTN Threads
Various spare screws and o-rings
Note: Please note that the base of the SQuape S[even] cannot be dismantled except for the two screws and the O-rings.
